APPLICATIONS  (OPTICAL FIBER CABLE)

Loose tube type dielectric cable

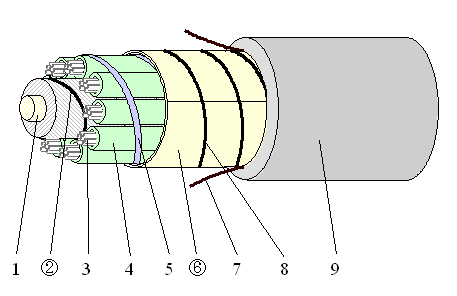

Figure-1. Loose tube type dielectric cable
  1. Central strength member
  2. Water blocking yarn (Narrow width water blocking tape)
  3. Optical fiber
  4. Loose (buffer) tube
  5. Plastic film tape (for binding loose tube)
  6. Water blocking tape
  7. Rip cord
  8. Tensile filament yarn
  9. Jacket (PE=Polyethylene)
Click on the Inquiry button to e-mail us.
Loose tube type metallic sheath cable

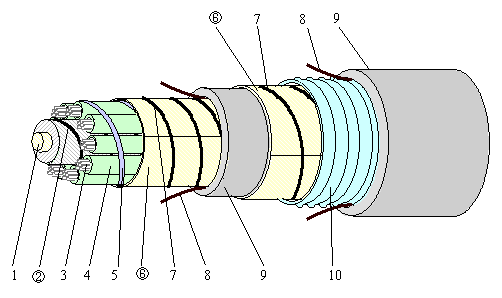

Figure-2. Loose tube type metallic sheath cable
  1. Central strength member
  2. Water blocking yarn (Narrow width water blocking tape)
  3. Optical fiber
  4. Loose (buffer) tube
  5. Plastic film tape (for binding loose tube)
  6. Water blocking tape
  7. Tensile filament yarn
  8. Rip cord
  9. Jacket (PE=Polyethylene)
  10. Corrugated steel foil laminated tape
Click on the Inquiry button to e-mail us.
Center tube type metallic sheath cable

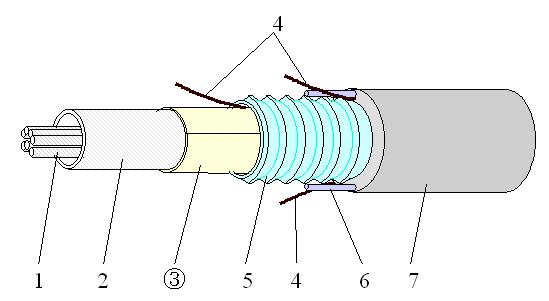

Figure-3. Center tube type metallic sheath cable
  1. Optical fiber
  2. Center core tube
  3. Water blocking tape
  4. Rip cord
  5. Corrugated metallic armor
  6. Wire strength member
  7. Jacket (PE=Polyethylene)
Click on the Inquiry button to e-mail us.
Center tube type dielectric cable

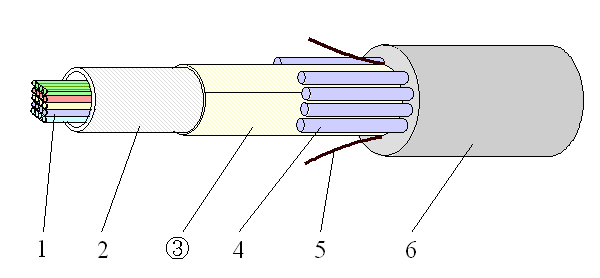

Figure-4. Center tube type dielectric cable
  1. Optical fiber
  2. Center core tube
  3. Water blocking tape
  4. Fiber glass reinforced plastic (FRP) strength member
  5. Rip cord
  6. Jacket (PE=Polyethylene)
Click on the Inquiry button to e-mail us.
1000 fibers slotted rod type cable

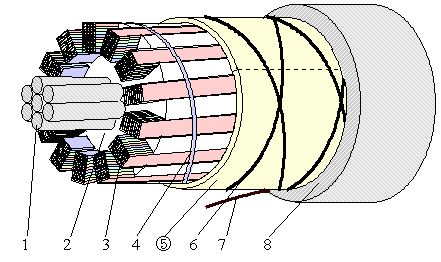

Figure-5. 1000 fibers slotted rod type cable
  1. Central strength member
  2. Slotted rod
  3. Optical fiber ribbon
  4. Plastic film tape
  5. Water blocking tape
  6. Tensile filament yarn
  7. Rip cord
  8. Jacket (PE=Polyethylene)
Click on the Inquiry button to e-mail us.
