APPLICATIONS (POWER CABLE)

6.6 kV`40 kV rating cable

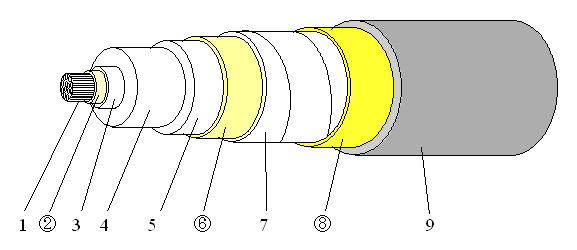

Figure-1. 6.6 kV`40 kV rating cable (Water blocking type)
  1. Conductor (Annealed copper twisted wire)
  2. Strand shield semi-conductive tape
  3. Extruded strand shield layer
  4. Insulation (XLPE)
  5. Extruded insulation shield layer
  6. Insulation shield semi-conductive tape (Water blocking semi-conductive tape)
  7. Metallic screen layer (Copper foil tape)
  8. Binding tape (Non-conductive water blocking tape)
  9. Jacket (PVCPolyvinyl chloride anticorrosive layer)
Click on the Inquiry button to e-mail us.
30 kV`200 kV rating non-moisture barrier cable

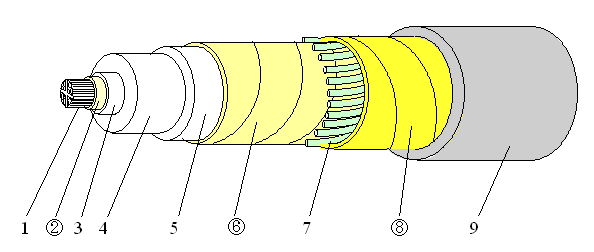

Figure-2. 30 kV`200 kV rating non-moisture barrier cable (Water blocking type)
  1. (Divided) Conductor | (See Figure-6.)
  2. Strand shield semi-conductive tape (Water blocking semi-conductive tape)
  3. Extruded strand shield layer
  4. Insulation (XLPE)
  5. Extruded insulation shield layer
  6. Insulation shield semi-conductive tape (Water blocking semi-conductive tape)
  7. Metallic screen layer (Copper wire strand)
  8. Binding tape (Non-conductive water blocking tape)
  9. Jacket (PVCPolyvinyl chloride anticorrosive layer)
Click on the Inquiry button to e-mail us.
30 kV`200 kV rating plain moisture barrier cable

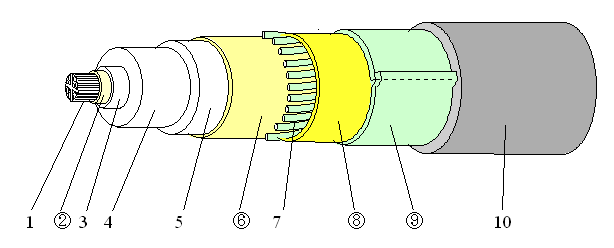

Figure-3. 30 kV`200 kV rating plain moisture barrier cable(Water blocking type)
  1. (Divided) Conductor | (See Figure-6.)
  2. Strand shield semi-conductive tape (Water blocking semi-conductive tape)
  3. Extruded strand shield layer
  4. Insulation (XLPE)
  5. Extruded insulation shield layer
  6. Insulation shield semi-conductive tape (Water blocking semi-conductive tape)
  7. Metallic screen layer (Copper wire strand)
  8. Insulation shield semi-conductive tape (Double faced water blocking semi-conductive tape)
  9. Moisture barrier tape (Lead or Aluminum foil composite)
  10. Jacket (PVCPolyvinyl chloride anticorrosive layer)
Click on the Inquiry button to e-mail us.
100 kV`500 kV rating corrugated aluminum sheathed perfect moisture barrier cable

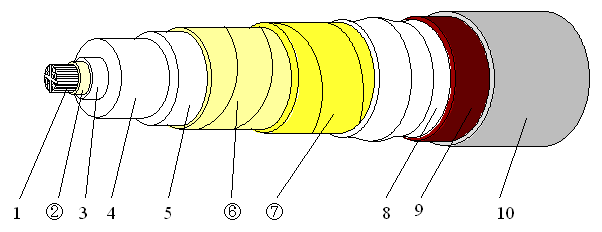

Figure-4. 100 kV`500 kV rating corrugated aluminum sheathed perfect moisture barrier cable (Water blocking type)
  1. (Divided) Conductor | (See Figure-6.)
  2. Strand shield semi-conductive tape (Water blocking semi-conductive tape)
  3. Extruded strand shield layer
  4. Insulation (XLPE)
  5. Extruded insulation shield layer
  6. Insulation shield semi-conductive tape (Water blocking semi-conductive tape)
  7. (Semi-conductive) Longitudinal copper wire woven fabric tape (Water blocking semi-conductive longitudinal copper wire woven fabric tape)
  8. Corrugated aluminum moisture barrier layer
  9. Asphalt
  10. Jacket (PVCPolyvinyl chloride anticorrosive layer)
Click on the Inquiry button to e-mail us.
30 kV`200 kV rating lead covered cable

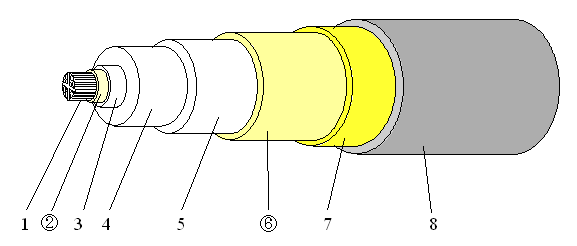

Figure-5. 30 kV`200 kV rating lead covered cable (Water blocking type)
  1. (Divided) Conductor | (See Figure-6.)
  2. Strand shield semi-conductive tape (Water blocking semi-conductive tape)
  3. Extruded strand shield layer
  4. Insulation (XLPE)
  5. Extruded insulation shield layer
  6. Insulation shield semi-conductive tape (Water blocking semi-conductive tape)
  7. Lead covered (Pb sheath)
  8. Jacket (PVCPolyvinyl chloride anticorrosive layer)
Click on the Inquiry button to e-mail us.
30 kV`500 kV rating divided conductors area water blocking type

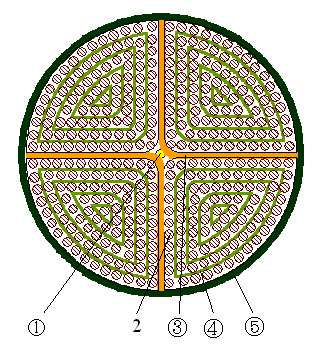

Figure-6. 30 kV`500 kV rating divided conductors area water blocking type
  1. Water blocking yarn
  2. Copper wire
  3. Non-conductive water blocking tape (Divided conductor separator)
  4. Non-conductive water blocking tape to be applied between copper wires
  5. Water blocking semi-conductive tape for binding divided conductor
